CN Godet Roller and Separate Roller
Series for Civil/ Industrial Yarn
01 / 02

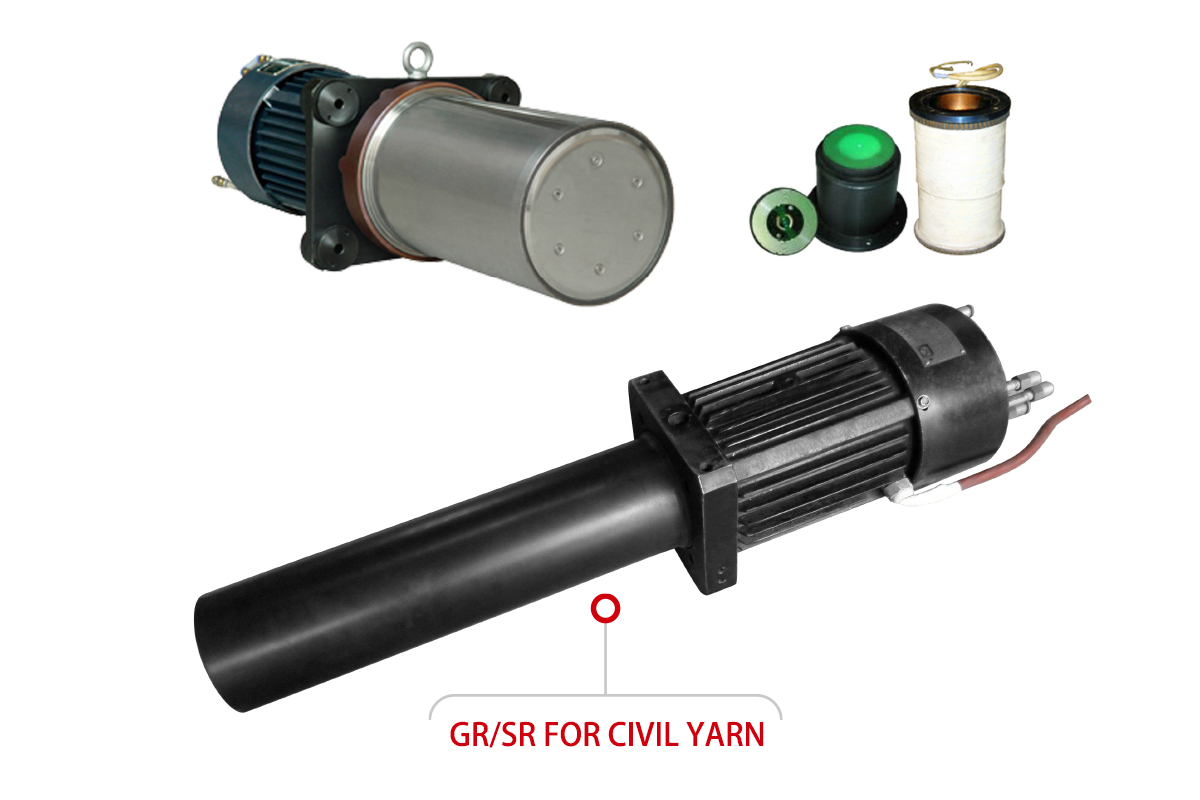

GR/SR FOR CIVIL YARN
| GR/SR | Unit | GRH/220/4000 | GRH/220/5000 | SR/110/5000 |
|---|---|---|---|---|
| Motor Power | Kw | 0.62/3.5 | 0.62/4.5 | 0.5 |
| Speed Range | m/min | 750-4000 | 1000-5000 | 1000-5000 |
| Operating Temp. Range | ℃ | 60~150 | 100-200 | - |
| Type of Heating | - | Power Frequency Heat Pipe | - | |
| lemp Measurement | - | Rotation | - | |
| Heating Power | Kw | 8 | 9 | - |
| Overall Dimension | mm | Ф220x400 | Ф220x400 | Ф110x400 |
| Surface Treatment | - | Mirror Chromium | Ceramics | Ceramics |

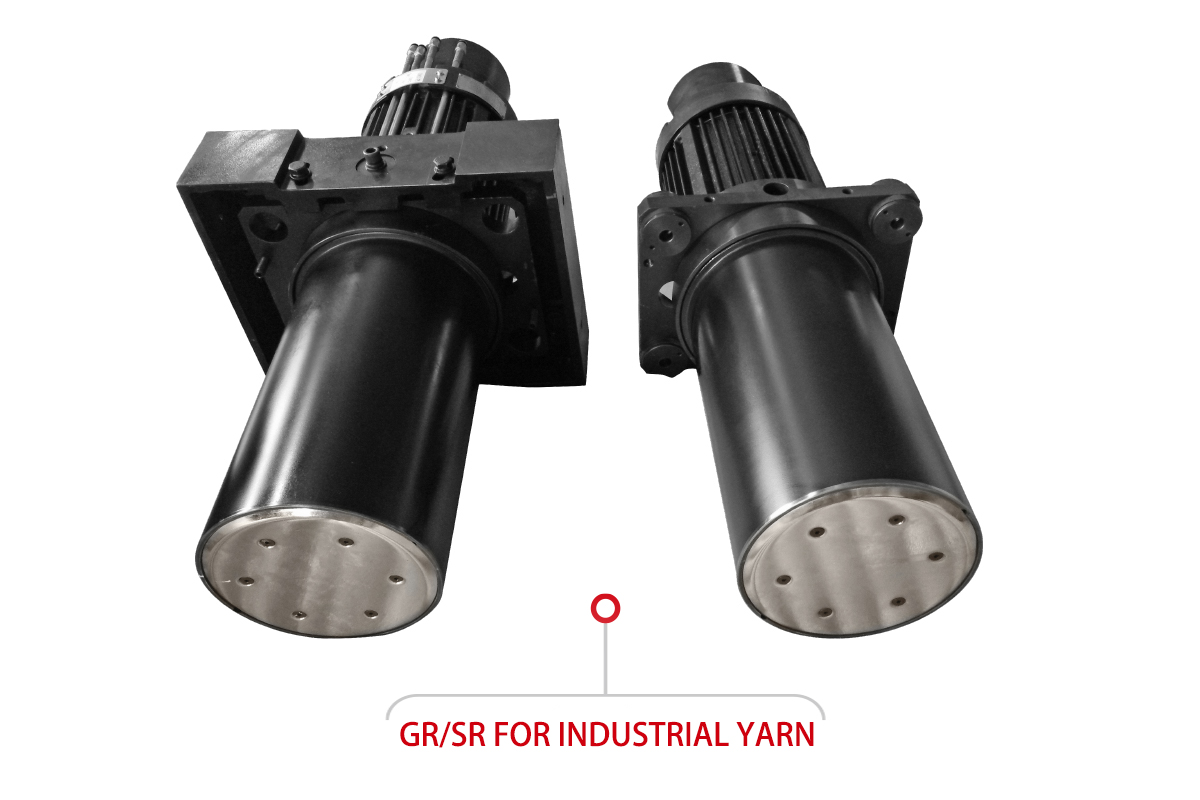

GR/SR FOR INDUSTRIAL YARN
| GR/Feeding Roller Type | Unit | GRH190 | GRH190G | FR190 |
|---|---|---|---|---|
| Motor Power | Kw | 1.6 | 5 | 1.2 |
| Speed Range | m/min | 300-1200 | 1000-3500 | 300-1200 |
| Operating Temp. Range | ℃ | 50-230 | 50-230 | - |
| Type of Heating | - | Power Frequency Heat Pipe | - | |
| lemp Measurement | - | Rotation | - | |
| Heating Power | Kw | 3 | 10 | - |
| Overall Dimension | mm | Ф190x320 | Ф190x350 | Ф190x350 |
| Surface Treatment | - | Ceramics | Ceramics | Ceramics |
