CN Spinnning Beam

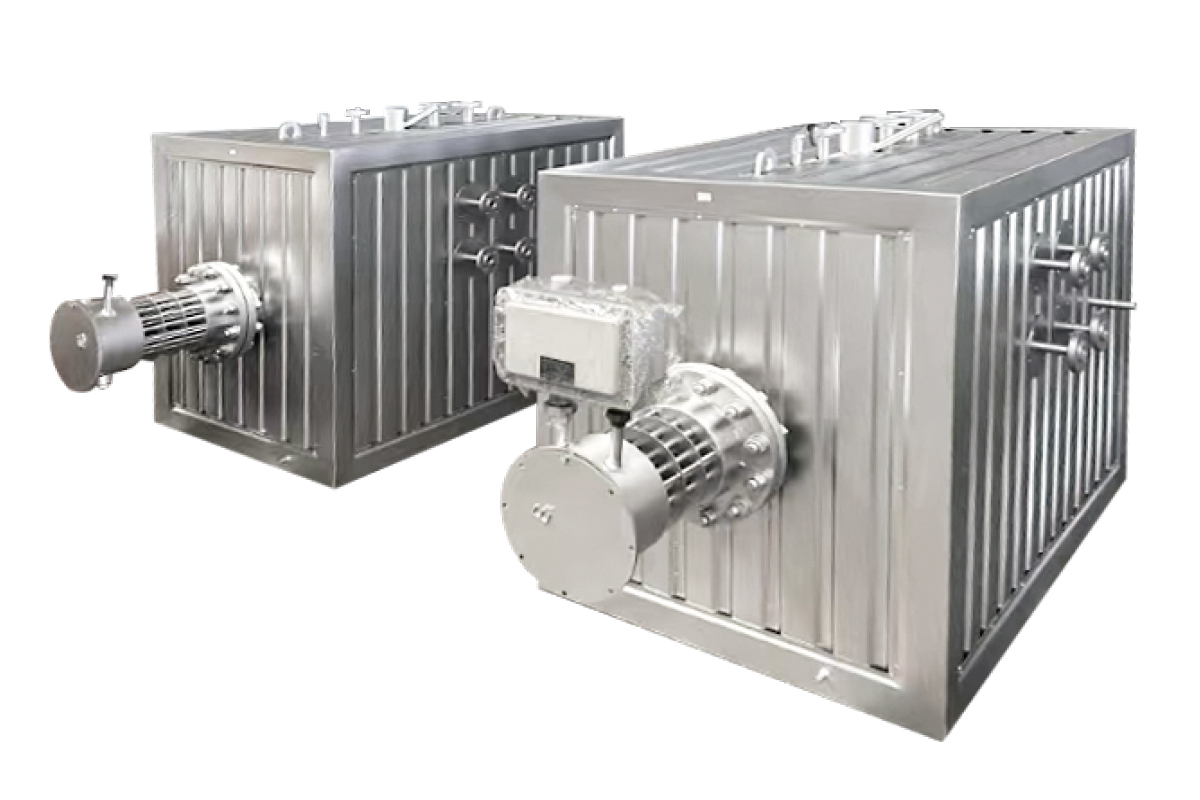

Dowtherm Boiler Series
01 / 01
Spinnning Beam Product Parameters
| Ends/Gauge/Dia. of spinneret | 5 Ends BottomMounted Clynder Type | 6 Ends BottomMounted Clynder Type | 8 Ends BottomMounted Clynder Type | 10 Ends BottomMounted Clynder Type | 12 Ends BottomMounted Clynder Type |
|---|---|---|---|---|---|
| Φ75 | - | 750 | - | 1050 | 1250 |
| Φ80 | - | - | - | 1100 | 1350 |
| Φ85 | - | 800 | 1000 | 1150 | 1400 |
| Φ90 | 650/900 | 850/900 | 1150 | 1350 | 1700 |
| Φ95 | 650/900 | 850/900 | 1150 | 1350 | 1700 |
| Φ105 | 750/900 | 900 | 1250 | 1500 | - |
Dowtherm Boiler Series Product Parameters
| Heating Power | Volume | Design Pressure | Design Temp. |
|---|---|---|---|
| 30 | 150 | 0.2 | 310 |
| 35 | 210 | 0.2 | 310 |
| 45 | 350 | 0.2 | 310 |
| 55 | 450 | 0.2 | 310 |
| 65 | 610 | 0.2 | 310 |
| 80 | 800 | 0.2 | 310 |
| 105 | 1170 | 0.2 | 310 |
